01↗
Core Solution
Integrated Servo Motion Systems
Matched motion solutions for accurate positioning, fast response and reliable continuous operation.
- Servo Drives
- Servo Motors
- Precision Planetary Gearboxes
SCP Motion Systems
Integrated motion solutions for smarter automation.
From servo control and precision transmission to robotic joints, SCP Co., Ltd. helps equipment manufacturers build more precise, reliable and easily integrated machines.
SCPMOTION
01CONTROL
02DRIVE
03TRANSMIT
04ACTUATE
About SCP
More than components.
A better-matched motion system.
SCP Co., Ltd. provides integrated motion control and robotic drive solutions for automation equipment manufacturers, system integrators and industrial distributors worldwide.
With servo motion systems at our core, we help customers select and combine the right drive, motor, gearbox and actuator for each application—from product selection and system matching to sampling and repeat supply.
Product solutions
One motion chain.
Four focused solution lines.
Servo motion is our core. Stepper, industrial drive and robotic motion products extend the system around your application.
02↗
Positioning Solution
Stepper & Linear Motion Systems
Reliable and cost-effective systems for incremental positioning and controlled linear movement.
- Stepper Drives
- Stepper Motors
- Linear Actuators & Modules
- Motion Controllers
03↗
Industrial Drive Solution
Variable Speed & Industrial Motor Systems
Efficient speed control and dependable power for general industrial equipment and CNC machinery.
- Variable Frequency Drives
- Industrial Motors
- CNC Spindle Motors
04↗
Advanced Motion Solution
Robotic Motion Systems
Compact, high-torque and high-precision components for robotic joints and advanced automation.
- Harmonic Reducers
- Frameless Torque Motors
- Robot Joint Modules
Series catalog
One clear view
of every series.
Each product family is shown once, with its models and key specifications grouped together for faster comparison.

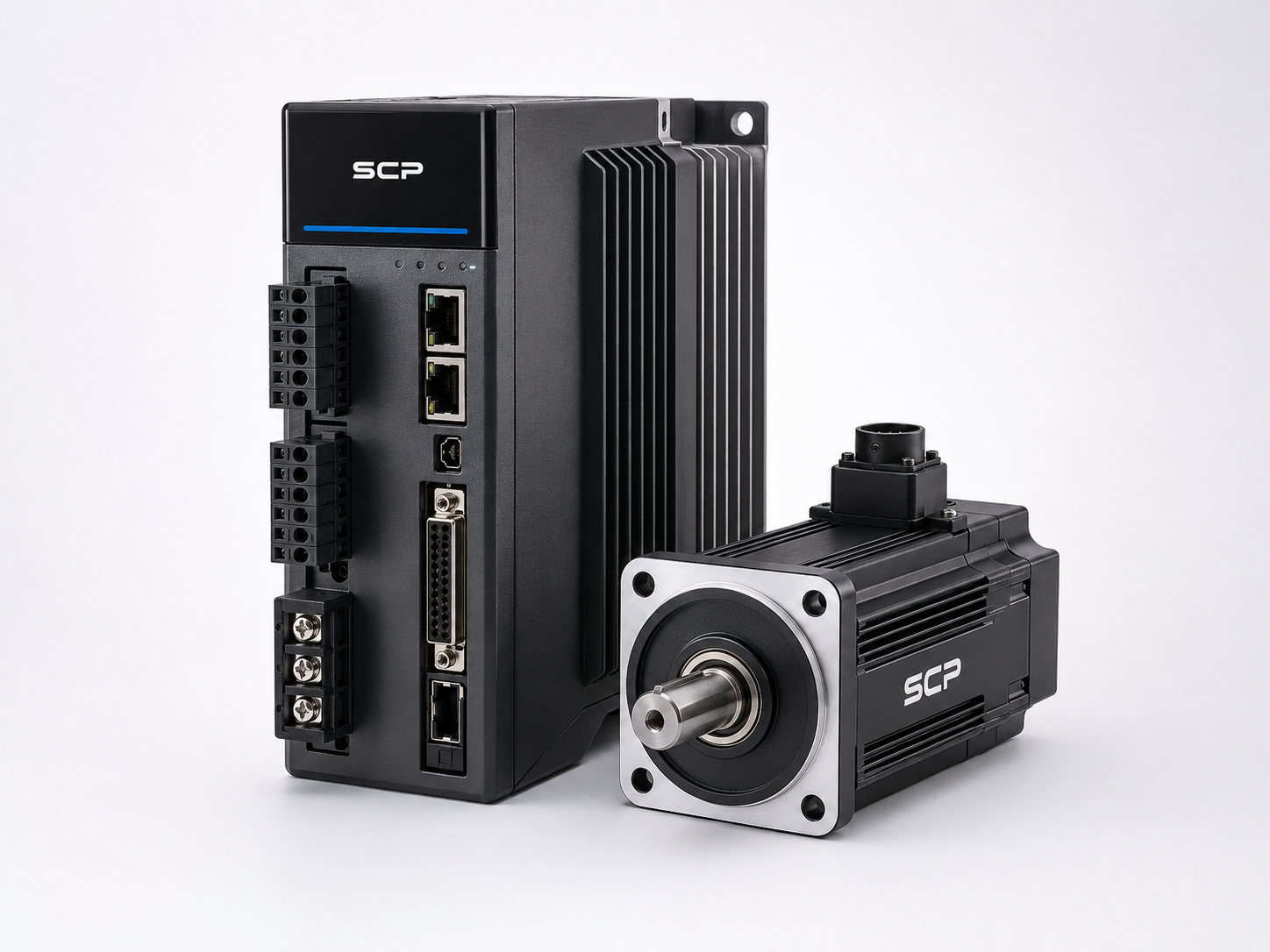

01
Servo Drives
Pulse and EtherCAT drives for high-response automation.
SCP| Model | Type | Key specifications |
|---|---|---|
| SVD750-RS | Pulse control | High-voltage AC servo motors up to 750 W · Matched 400 W / 750 W motors · 10,000 pulses/rev default · Screw, gearbox, belt and rack presets |
| SVD750-EC | EtherCAT bus | EtherCAT synchronized control · Servo motors up to 750 W · Compact application-based setup · Matched 400 W / 750 W motors |
| SVD2300-RS | Pulse control | Single- or three-phase 220 VAC · Integrated braking resistor · Software and hardware filtering · On-board display · Modbus, speed and torque modes |
02
Servo Motors
Matched AC servo motors in three frame sizes.
SCP| Model | Type | Key specifications |
|---|---|---|
| 60 Series | 60 mm frame | Compact machine axes · Precision feedback · Matched servo drive |
| 80 Series | 80 mm frame | Balanced torque and size · Industrial positioning · Matched servo drive |
| 130 Series | 130 mm frame | Higher-output axes · Demanding machinery · Matched servo drive |

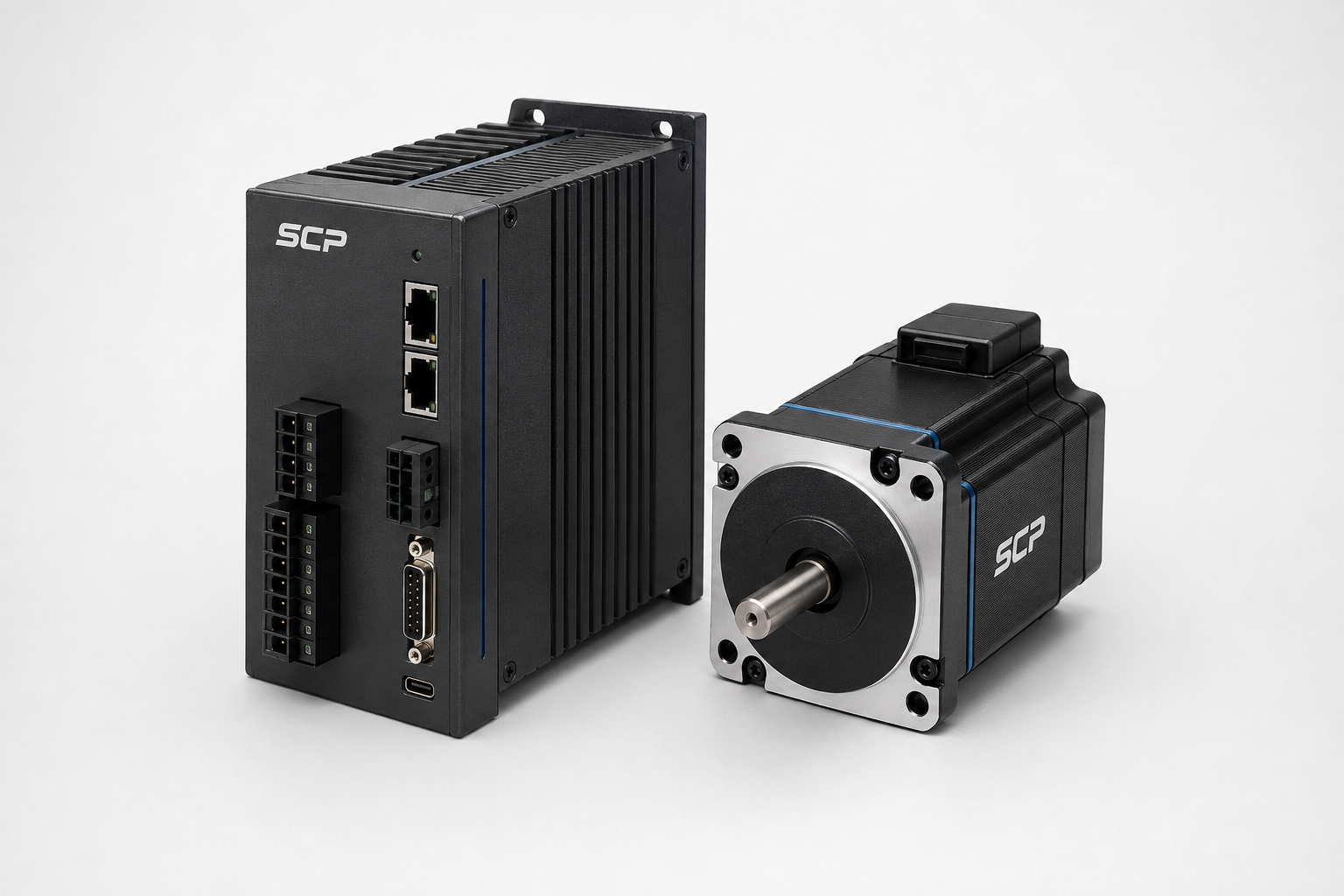

03
Closed-loop Stepper Drives
Vector control with encoder feedback for reliable positioning.
View complete technical data →
SCP| Model | Type | Key specifications |
|---|---|---|
| 2HSD110-RS | Pulse / 110 frame | Closed-loop vector control · Low heat, high torque · 5–24 V control signals · Current, voltage and tracking protection |
| 2HSD110-EC | EtherCAT / 110 frame | EtherCAT bus control · 220 VAC or DC input · Adjustable static/dynamic current · Offline digital setup |
| HSD57 | 42 / 57 / 60 frame | 32-bit DSP · 0–6 A adaptive output · Pulse input to 200 kHz · Flexible microsteps · Protection functions |
| HSD86 | 86 frame | 32-bit DSP · 0–8.2 A adaptive output · Pulse input to 200 kHz · Trapezoidal-wave test |
04
Closed-loop Stepper Motors
Encoder-equipped hybrid motors that prevent lost steps.
View complete technical data →SCP| Model | Type | Key specifications |
|---|---|---|
| D57HS23EG | 57 mm closed loop | 2.3 N·m holding torque · 5.0 A rated current · 1,000-line encoder · 91 mm body length · 1.2 kg |
| 60HS28EG | 60 mm closed loop | 2.8 N·m holding torque · 5.0 A rated current · 1,000-line encoder · 110 mm body length · 1.6 kg |
| 86HS85EG | 86 mm closed loop | 8.5 N·m holding torque · 6.0 A rated current · 1,000-line encoder · 144 mm body length · 4.3 kg |
05
Open-loop Stepper Drives
Low-noise two-phase drives for compact through 220 V systems.
View complete technical data →SCP| Model | Type | Key specifications |
|---|---|---|
| SMD42-IR | Low-noise 42 drive | Built-in pulse generator · Internal/external pulse mode · Low-vibration standstill · 5–24 V control · Servo-derived algorithm |
| SMD57-IR | Low-noise 57 drive | 57-frame motors · Low-noise motion · Industrial pulse control |
| SMD86 | Low-noise 86 drive | 86-frame motors · Smooth motion · Industrial positioning |
| MA556 | 57 two-phase drive | Low-noise control · General automation · Two-phase architecture |
| DMA860H | Economy 86 drive | Economical drive · Low-noise operation · 86-frame motors |
| 3MA2283 / 3MA22100 | 220 V drive | 220 VAC input · Two-phase control · Two current ranges |
06
Open-loop Stepper Motors
Complete frame-size range for economical incremental motion.
View complete technical data →SCP| Model | Type | Key specifications |
|---|---|---|
| 42HS06 | 42 mm stepper motor | 0.6 N·m holding torque · 2.5 A rated current · 48 mm body length · 0.35 kg · Matched with SMD42 |
| 57HS23 | 57 mm stepper motor | 2.3 N·m holding torque · 4.0 A rated current · 76 mm body length · 1.0 kg · Matched with SMD57 / MA556 |
| 86HS85 | 86 mm stepper motor | 8.5 N·m holding torque · 6.0 A rated current · 118 mm body length · 3.8 kg · Matched with SMD86 / DMA860H |
| 1103SH160 | 110 mm 3-phase motor | 16 N·m holding torque · 6.0 A rated current · 185 mm body length · 9.0 kg · Heavy-duty positioning |
| 1303SH500 | 130 mm 3-phase motor | 50 N·m holding torque · 10 A rated current · 318 mm body length · 26 kg · Large-machine axes |

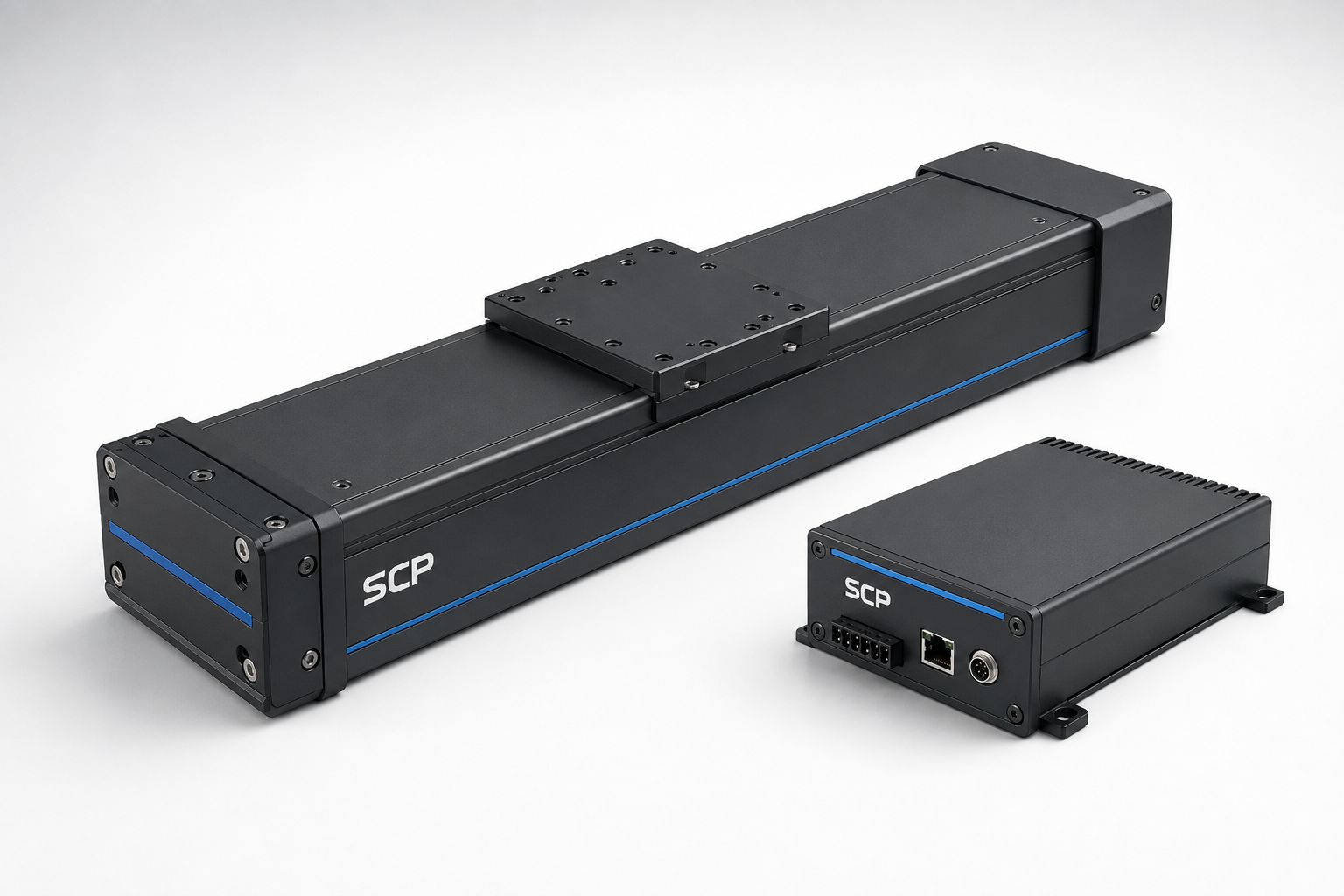

07
Control & Linear Motion
Integrated control and enclosed linear-motion products for complete automation axes.
SCP| Model | Type | Key specifications |
|---|---|---|
| EH3 Series PLC | Motion controller | Servo and stepper control · Compact machine automation · Matched SCP motion architecture |
| Enclosed Linear Module | 50 / 80 size | Fully enclosed construction · 50 and 80 size options · Protected precision positioning |
08
CNC Spindle Motors
High-speed spindle series for routing, engraving, drilling and milling.
View complete technical data →
SCP
SCP
SCP| Model | Type | Key specifications |
|---|---|---|

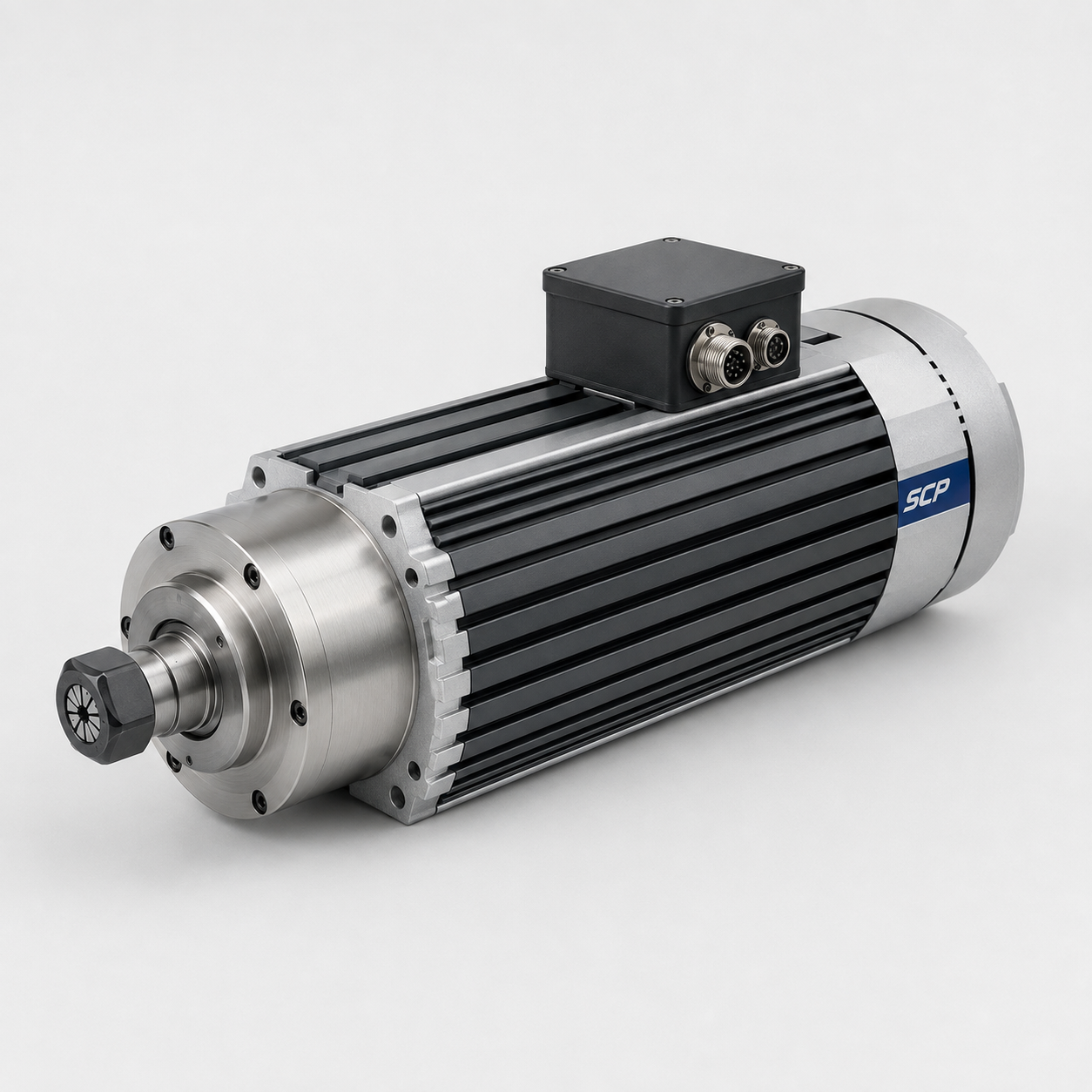

| GDZ65F-800 | Air-cooled spindle | 0.8 kW / 220 V · 24,000 rpm · ER11 collet · 65 mm body · 3.0 kg |

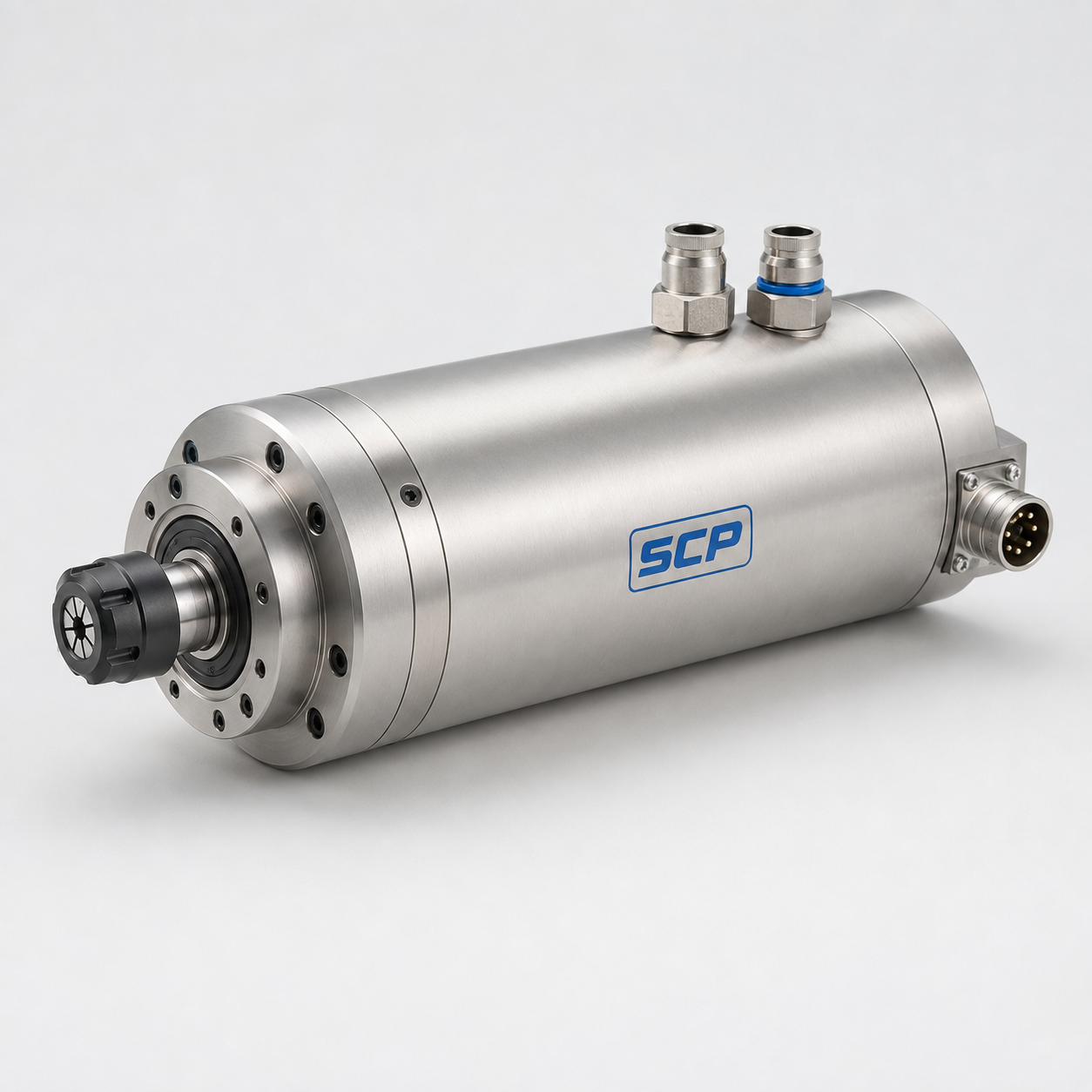

| GDZ65-800A | Water-cooled spindle | 0.8 kW / 220 V · 24,000 rpm · ER11 collet · 65 mm body · 2.6 kg |
| GDZ80-1.5C | Water-cooled spindle | 1.5 kW / 220 V · 24,000 rpm · ER11 collet · 80 mm body · 4.4 kg |
| GDZ100-3 | Water-cooled spindle | 3.0 kW / 220–380 V · 24,000 rpm · ER20 collet · 100 mm body · 9.0 kg |

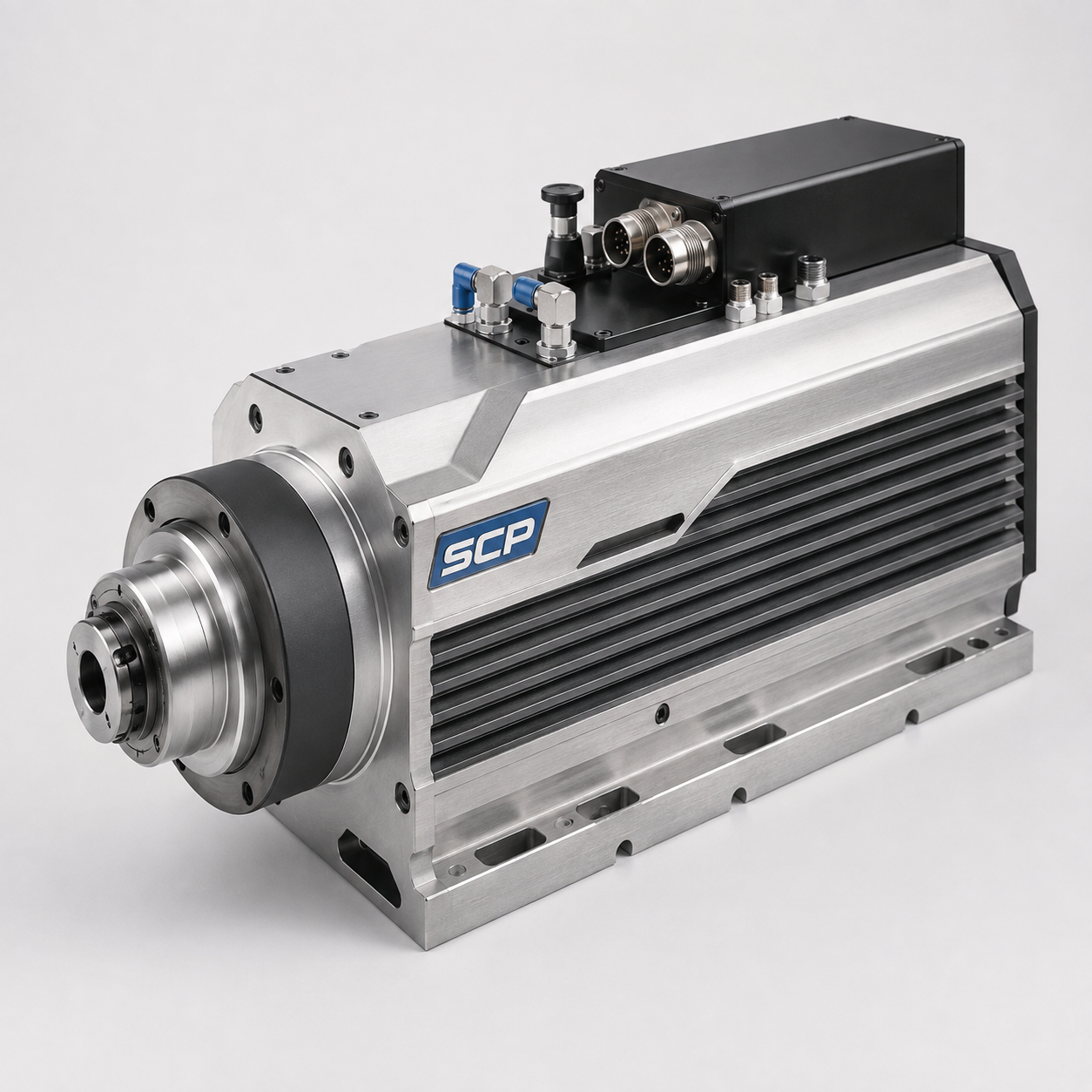

| GDZ143×133-8/9 | Automatic tool-change spindle | 8–9 kW / 220–380 V · 12,000–24,000 rpm · ER20 collet · Air-cooled · 30 kg |
Why SCP
Less integration friction.
More motion certainty.
Application-first selection
Load, speed, precision and environment define the architecture.
Matched stack
Drives and motors selected as one coherent system.
Engineering support
Guidance from sizing through integration.
Scalable supply
Support for prototypes and repeat production.
01
Robotics
↗02
CNC & Machine Tools
↗03
Packaging
↗04
Material Handling
↗05
Semiconductor
↗06
New Energy
↗Start a project
Tell us what your machine needs to do.
Share your target specifications or current part number.
Send your RFQ
